Type	Part No.	Color	Pdf	Lighting Color	Wave Lenght (Nm)	Viewing Angle2 1/2	Luminous Intensity (MW/Sr)		Forward Voltage(v)		Check
					Typ	Typ	AVG	Rank	Min	Max
IR SMD	CL-SFD281IR-06				940	50		1.45 - 1.8 V
	CL-SFD281PT-06				940	70		Vceo : 30V, Veco : 6V
IR SMD	SP192IR-940 (1608)			Infrared	940	120	5	10	1.0	1.5
	SP192IR-850 (1608)			Infrared	850	120	5	-	-	1.7
	SP172IR-940 (2012)			Infrared	940	120	5	10	1.0	1.5
	SP172IR-850 (2012)			Infrared	850	120	5	-	-	1.7

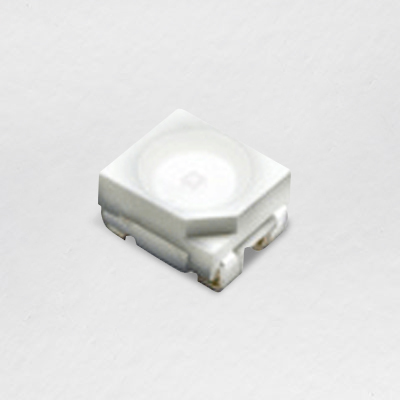

	SF681IR-940 (3528)			Infrared	940	120	0.5	1	1.0	1.8
	SF681IR-850 (3528)			Infrared	850	120	1	-	-	1.8
	SF681IR-740 (3825)			Infrared	740	120	2	7	1.5	2.5
	SFC506IR-940 (5050)			Infrared	940	120	5	10	-	2.0
	SFC506IR-850 (5050)			Infrared	850	120	9	15	1.0	2.3
	SFC506IR-830 (5050)			Infrared	830	120	2	7	1.2	-
	SFC506IR-740 (5050)			Infrared	740	120	2	7	1.5	2.5
	SFC281IR-940-B-02 (2835)			Infrared	940	120	5	-	1.3	1.8
	SFC281IR-850-B-02 (2835)			Infrared	850	120	10	-	1.2	1.6

Part Number	Pdf	Dimensions	Emitting Color	Luminous Intensity (MW/Sr)		Λp (Nm)	Half Angle	Fmax	Forward Voltage (V)	Check
				AVG	Rank
CLE23G		4.6X4.6mm	Infrared	2.0	-	940	±30º	20mA	Outside
CLE302		3.2X2.8mm	Infrared	0.7		940	±30º	20mA	Inside

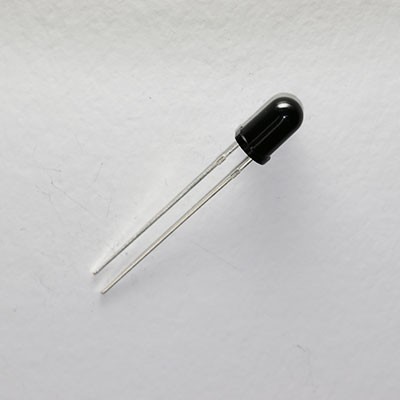

CLI3311-H		3Ø	Infrared	20		940	±10º	50mA	1.3
CL85I3311-C		3Ø	Infrared	55		843	±10º	50mA	1.6
CL85I5315-C		5Ø	Infrared	110		847	±20º	50mA	1.5
CLI5315-H		5Ø	Infrared	56		940	±15º	50mA	1.3
CLIR3328-UC		3.2X2.8mm	Red / Infrared	400 / 100		660 / 880	±60º	20mA	2 / 1.5

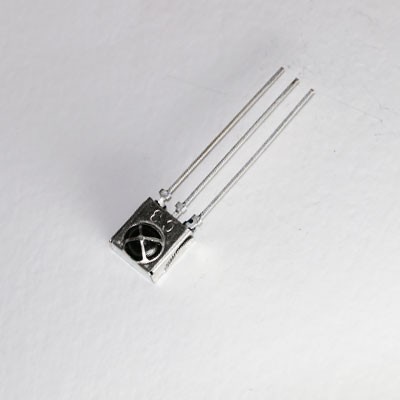

Part Number	Pdf	Supply Voltage		Supply Current		Center Frequency	Reception Distance		Viewing Angle	Check
		Min	Max	Min	Max	Typ	Min	Typ	2Ø1/2(")

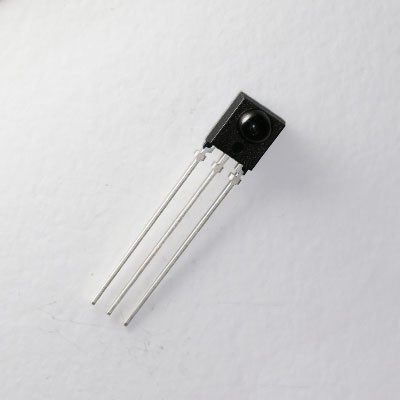

CLT 138L(N)		2.7	5.5	0.3	0.7	37.9	12	18	±45
CLT 138LM		2.7	5.5	0.3	0.7	37.9	12	18	±45
CLT 138T(N)		2.7	5.5	0.3	0.7	37.9	12	18	±45
CLT 138TM2(N)		2.7	5.5	0.3	0.7	37.9	15	20	±45
CLS 138FN		2.7	5.5	0.3	0.7	37.9	12	18	±45
CLS 138FN-NL		2.7	5.5	0.3	0.7	37.9	7	10	±45

part number	package type	maximum ratings				electro-optical characteristics						Check
		forward current IF(mA)	reverse voltage VR(V)	power dissipation PO(mW)	operating temp topr(℃)	radiant intensity PO(mW/sr) typ.IF(mA)		forward voltage vf(V) typ.IF(mA)		peak emission wavelength Λp(nm)	half angle(deg.) typ
CLBL-1ML2	TO18	50	5	120	-25~100	1.3	100	1.8	20	660	±35
CLBL-1ML3	TO18	50	5	120	-25~100	1.3	100	1.8	20	660	±30
CLBL-1KL3	TO18	50	5	120	-25~100	1.3	100	1.8	20	660	±15
CLFL-1KL2	TOP18	100	5	170	-30~100	45	100	1.5	50	865	±8
CLFL-1KL3	TO18	100	5	170	-30~100	30	100	1.4	100	830	±8
CLFL-1KL5	TO18	100	5	170	-30~100	22	100	1.4	100	830	±5
CLFL-1ML2	TO18	100	5	170	-30~100	5.4	50	1.8	20	830	±36
CLFL-1ML3	TO18	100	5	170	-30~100	5.4	50	1.8	20	830	±30
CLGL-1ML2	TO18	100	5	200	-30~100	6.0	50	1.5	50	850	±36
CLGL-1KL2	TO18	100	5	200	-30~100	30	100	1.55	100	850	±15
CLGL-1KL3	TO18	100	5	200	-30~100	30	100	1.55	100	850	±8
CLCL-1ML2	TO18	100	5	170	-30~100	2.2	50	1.4	20	880	±36
CLCL-1KL2	TO18	100	5	170	-30~100	32	100	1.4	20	880	±15
CLCL-1KL3	TO18	100	5	170	-30~100	32	100	1.4	20	880	±15
CLEL-1KL2	TO18	100	5	170	-30~100	12	100	1.35	100	940	±15
CLEL-1KL3	TO18	100	5	170	-30~100	15	100	1.35	100	940	±8
CLEL-1KL5	TO18	100	5	170	-30~100	10	100	1.35	100	940	±5
CLEL-1ML2	TO18	100	5	170	-30~100	2.7	50	1.2	50	940	±32
CLEL-1ML3	TO18	100	5	170	-30~100	2.7	50	1.2	50	940	±32
CLVL-1KF	TO18	100	5	100	-30~80	700	20	3.6	20	372	±55
CLVL-1KLF365	TO18	100	5	100	-30~80	700	20	3.6	20	365	±7
CLVL-1KLF375	TO18	100	5	100	-30~80	700	20	3.6	20	375	±7
CLVL-1KLF380	TO18	100	5	100	-30~80	700	20	3.6	20	380	±7
CLVL-1KLF385	TO18	100	5	100	-30~80	700	20	3.6	20	385	±7
CLVL-1KLF390	TO18	100	5	100	-30~80	1700	20	3.6	20	390	±7
CLVL-1KLF395	TO18	100	5	100	-30~80	1700	20	3.6	20	395	±7
CLVL-1KLF400	TO18	100	5	100	-30~80	1700	20	3.6	20	400	±7
CLVL-1KLF405	TO18	100	5	100	-30~80	1700	20	3.6	20	405	±7
CLVL-1KLF410	TO18	100	5	100	-30~80	1700	20	3.6	20	410	±7
CLVL-1KLF415	TO18	100	5	100	-30~80	1700	20	3.6	20	420	±7
CLVL-1KLF420	TO18	100	5	100	-30~80	1700	20	3.6	20	420	±7
CLEL-5CL120	TO18	100	5	150	-25~85	40	50	1.3	50	950	±20
CLEL-1L501	TO18	100	5	200	-25~85	55	50	1.35	50	940	±8

part number	package type	open circuit voltage voc (V)	short circuit current isc (㎂)	dark current id (㎂)	spectral sensitivity Λ (nm)	peak wavelength Λp (nm)	half Angle (deg.)	maximum reverse voltage vr (V)	dimension (code/page)	Check
CLSP-1KL	TO18	0.4	35	0.1max	450~1,050	900	±15	20	1KL/7
CLSP-1ML	TO18	0.4	15	0.1max	450~1,050	900	±60	20	1KL/7
CLSP-2ML	TO18	0.38	25	0.7max	450~1,050	900	±60
CLSP-3ML	TO18	0.38	75	2.0max	450~1,050	900	±60	5	1KL/7
CLSP-8K	TO8	0.4	350		450~1,050	900	±60	5	1KL/7
CLSP-8ML	TO8	0.4	350		450~1,050	900	±60	5	1KL/7

part number	package type	open circuit voltage voc (V)	short circuit current isc (㎂)	dark current id (㎂)	spectral sensitivity Λ (nm)	peak wavelength Λp (nm)	half Angle (deg.)	maximum reverse voltage vr (V)	dimension (code/page)	Check
CLHP-1.5MLR2	TO18	0.37	25	1.0max	700~1,050	940	±60	5	1KL/7
CLHP-2.5MLR2	TO18	0.37	52	1.0max	700~1,050	940	±60	5	1KL/7
CLHP-2ML	TO18	0.38	28	1.0max	450~1,050	900	±60	5	1KL/7
CLHP-2MLR2	TO18	0.37	30	1.0max	700~1,050	940	±60	5	1KL/7
CLHP-3ML	TO5	0.38	75	1.0max	450~1,050	900	±60	5	1KL/7
CLHP-3MLR2	TO5	0.38	60	1.0max	720~1,050	940	±60	5	1KL/7
CLHP-45ML	TO5	0.37	180	2.0max	450~1,050	900	±60	10	1KL/7
CLHP-45MLR2	TO5	0.37	150	2.0max	720~1,050	940	±60	10	1KL/7
CLHP-202	TO5	0.30	65	0.1max	450~1,050	900	±55	10	1KL/7

part number	package type	open circuit voltage voc (V)	short circuit current isc (㎂)	dark current id (㎂)	spectral sensitivity Λ (nm)	peak wavelength Λp (nm)	half Angle (deg.)	maximum reverse voltage vr (V)	dimension (code/page)	Check
CLHPI-1K1	TO18	0.38	10	0.01max	450~1,050	920	±20	40	1KL/7
CLHPI-1K3	TO18	0.38	10	0.01max	450~1,050	920	±20	40	1KL/7
CLHPI-201	TO18	0.35	19	0.01max	450~1,050	920	±50	50	1KL/7

part number	package type	open circuit voltage voc (V)	short circuit current isc (㎂)	dark current id (㎂)	spectral sensitivity Λ (nm)	peak wavelength Λp (nm)	half Angle (deg.)	maximum reverse voltage vr (V)	dimension (code/page)	Check
CLUV-1KA	TO18	-	-	0.001max	200~375	340	±60	2	1KL/7
CLUV-1KLA	TO46			0.001max	300~375	340	±15	2	1KL/7

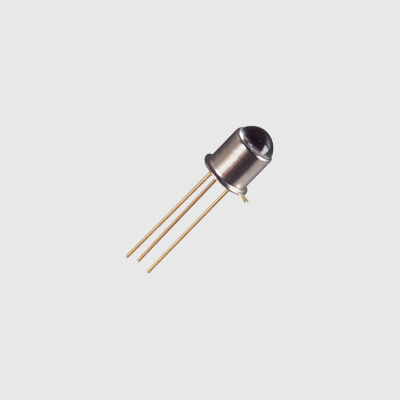

part number	package type	collector dark current ioeo (㎂)	light current Ⅱ (㎂)	switching speed		spectral sensitivity Λ(nm)	peak wavelength Λp(nm)	half angle (deg.)	collector emitter voltage vceo (V)	dimension (code/page)	Check
				rise time tr	fall time tr
CLPT-1KLB	TO18	1000MAX	5.0min	65	75	480~1,000	800	±15	30	1KL/7
CLPT-1MLA	TO18	1000MAX	5.0min	65	75	480~1,000	800	±70	25	1KL/7
CLPT-1MLB	TO18	1000MAX	5.0min	65	75	480~1,000	800	±70	25	1KL/7

part number	package type	collector dark current ioeo (㎂)	light current Ⅱ (㎂)	switching speed		spectral sensitivity Λ(nm)	peak wavelength Λp(nm)	half angle (deg.)	collector emitter voltage vceo (V)	dimension (code/page)	Check
				rise time tr	fall time tr
CLST-1KLA	TO18	1.0	8.0	8	10	350~1,050	880	±15	40	1KL/7
CLST-1KLAR2	TO18	1.0	6.0	8	10	720~1,050	940	±8	40	1KL/7
CLST-1KLB	TO18	1.0	8.0	8	10	350~1,050	880	±15	40	1KL/7
CLST-1KA	TO18	1.0	3.0	8	10	350~1,050	880	±50	40	1KL/7
CLST-1KB	TO18	1.0	3.0	8	10	350~1,050	880	±50	40	1KL/7
CLST-1KL3A	TO18	1.0	7.0	8	10	350~1,050	880	±6	40	1KL/7
CLST-1KL3B	TO18	1.0	7.0	8	10	350~1,050	880	±6	40	1KL/7
CLST-1MLA	TO18	1.0	2.0	8	10	350~1,050	880	±70	40	1KL/7
CLST-1MLAR2	TO18	1.0	2.0	8	10	720~1,050	940	±70	40	1KL/7
CLST-1MLB	TO18	1.0	2.0	8	10	350~1,050	880	±70	40	1KL/7
CLST-1MLBR2	TO18	1.0	2.0	8	10	720~1,050	940	±70	40	1KL/7

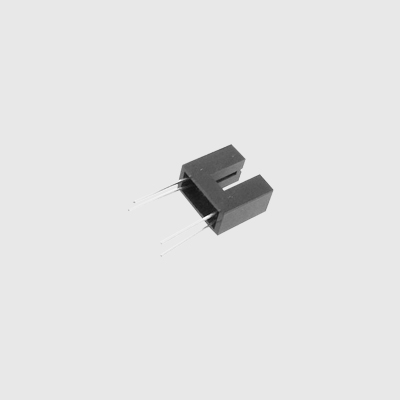

part number	Pdf	dimension	input VF	input Λp	switching speed		I CEL	I CMAX	I FMAX	Check
					rise time tr	fall time tr
CLI-233		4.2x6.4mm	1.2V	940nm	50㎲	50㎲	50mA	20mA	50mA
CLI-206		4.2x6.4mm	1.2V	940nm	50㎲	50㎲	50mA	20mA	50mA

part number	Pdf	dimension	lens color	I CEL V Ce #SV 1000Lux	peak sensitivity(nm)		half angle	I CMAX	P D(nm)	Check
					rise	fall
CLT-23G		4.6x4.6mm	Black	30	4.0mA	880	±30	20mA	Outside
CLT-302		3.2x2.8mm	Black	30	1.5mA	880	±30	20mA	Outside
CLT-3311		3Ø	Water Clear	35	4.5m	880	±20	20mA	Outside
CLT-3811		3Ø	Black	35	4.5mA	880	±20	20mA	Outside
CLT-5811		5Ø	Black	35	4.5mA	880	±20	20mA	Outside

part number	package type	MAXIMUM RATINGS		ELETRO-OPTICAL CHARATERISTICS				Check
		revers voltage VR (V)	operating temp topr (℃)	spectrial response Λp(nm)	peak wavelength Λp(nm)	photo sensitivity s(A/W)	dark current id(pA)
CLSC-2KR	TO46	10	-20~85	590~710	660	0.56	100m
CLSC-2KG	TO46	10	-20~85	460~600	530	0.31	100m
CLSC-2KB	TO46	10	-20~85	400~530	470	0.23	100m
CLSC-3KR	TO5	10	-20~85	590~710	600	0.56	100m
CLSC-3KG	TO5	10	-20~85	460~600	530	0.31	100m
CLSC-3KB	TO5	10	-20~85	400~530	470	0.23	100m
