POWER LED

POWER LED

1W POWER LED

제품 특징

Type Part No. Color Packaging Color Pdf Wave Lenght (Nm) Viewing Angle2 1/2 Luminoous Flux Current Forward Voltage(v) Check
Typ Typ Min Typ Typ Min Max
1W POWER LED CL-1W-URB Red
630 120 40 50 350mA 2.0 2.4
CL-1W-UYB Yellow
590 120 40 50 350mA 2.0 2.4
CL-1W-UPGB Pure Green
525 120 60 75 350mA 3.0 3.4
CL-1W-UBB Blue
470 120 20 30 350mA 3.0 3.4
CL-1W-UWB White
X: 0.30
Y: 0.30		 120 80 95 350mA 3.0 3.4
CL-1W-WWL Warm White
X: 0.38
Y: 0.45		 120 80 95 350mA 3.0 3.4
Type Part No. Pdf Check Detail
1W POWER LED CL-1W-URB 보기
CL-1W-UYB 보기
CL-1W-UPGB 보기
CL-1W-UBB 보기
CL-1W-UWB 보기
CL-1W-WWL 보기
POWER LED

3W POWER LED

제품 특징

Type Part No. Color Packaging Color Pdf Wave Lenght (Nm) Viewing Angle2 1/2 Luminoous Flux Current Forward Voltage(v) Check
Typ Typ Min Typ Typ Min Max
3W POWER LED CL-3W-URB Red Diffused
630 120 60 80 700mA 2.0 2.4
CL-3W-UYB Yellow
590 120 60 80 700mA 2.0 2.4
CL-3W-UPGB Pure Green
525 120 90 140 700mA 3.0 3.4
CL-3W-UBB Blue
470 120 30 45 700mA 3.0 3.4
CL-3W-UWB White
X: 0.30
Y: 0.30		 120 150 180 700mA 3.0 3.4
CL-3W-WWL Warm White
X: 0.38
Y: 0.45		 155 140 160 700mA 3.5 4.5
CL-3W-RGB Full Color
630/525/470 120 23.5/51.7/10.7 30/60/15 700mA 2.0/3.0/3.0 3.0/4.0/4.0
Type Part No. Pdf Check Detail
3W POWER LED CL-3W-URB 보기
CL-3W-UYB 보기
CL-3W-UPGB 보기
CL-3W-UBB 보기
CL-3W-UWB 보기
CL-3W-WWL 보기
CL-3W-RGB 보기
POWER LED

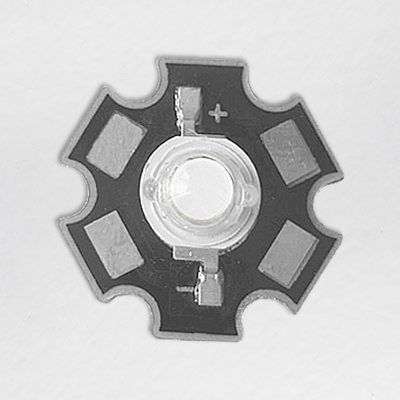

5W POWER LED

제품 특징

Type Part No. Color Packaging Color Pdf Wave Lenght (Nm) Viewing Angle2 1/2 Luminoous Flux Current Forward Voltage(v) Check
Typ Typ Min Typ Typ Min Max
5W POWER LED CL-5W-URB Red
630 120 100 130 700mA 3.8 5.2
CL-5W-UYB Yellow
590 120 100 130 700mA 3.8 5.2
CL-5W-UPGB Pure Green
525 120 200 240 700mA 6.0 7.6
CL-5W-UBB Blue
470 120 50 70 700mA 6.0 7.6
CL-5W-UWB White
X: 0.30
Y: 0.30		 120 250 320 700mA 6.0 7.6
CL-5W-WWL Warm White
X: 0.38
Y: 0.45		 120 210 260 700mA 6.0 7.6
Type Part No. Pdf Check Detail
5W POWER LED CL-5W-URB 보기
CL-5W-UYB 보기
CL-5W-UPGB 보기
CL-5W-UBB 보기
CL-5W-UWB 보기
CL-5W-WWL 보기
POWER LED

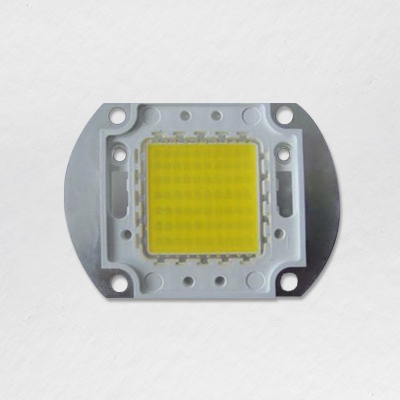

10W POWER LED / 20W POWER LED / 40W POWER LED / 50W POWER LED / 100W POWER LED

제품 특징

Type Part No. Color Packaging Color Pdf Wave Lenght (Nm) Viewing Angle2 1/2 Luminoous Flux Current Forward Voltage(v) Check
Typ Typ Min Typ Typ Min Max
10W POWER LED CL-10W-UWB White
X: 0.30
X: 0.30 		140 600 700 600mA 15 17
CL-10W-WWL Warm White
X: 0.38
Y: 0.45		 140 500 600 600mA 15 17
20W POWER LED CL-20W-UWB White
X: 0.30
Y: 0.30		 140 1000 1300 1400mA 15 17
CL-20W-WWL Warm White
X: 0.38
Y: 0.45		 140 900 1200 1400mA 15 17
40W POWER LED CL-40W-UWB White
X: 0.30
Y: 0.30		 140 2000 2600 1400mA 30 35
CL-40W-WWL Warm White
X: 0.38
Y: 0.45		 140 2000 2500 1400mA 30 35
50W POWER LED CL-50W-UWB White
X: 0.30
Y: 0.30		 140 2500 3000 1500mA 30 35
CL-50W-WWL Warm White
X: 0.38
Y: 0.45		 140 2500 3000 1500mA 30 35
100W POWER LED CL-100W-UWB White
X: 0.30
Y :0.30		 140 5000 6000 3500mA 30 35
CL-100W-WWL Warm White
X: 0.38
Y: 0.45		 140 5000 6000 3500mA 30 35
Type Part No. Pdf Check Detail
10W POWER LED CL-10W-UWB 보기
CL-10W-WWL 보기
20W POWER LED CL-20W-UWB 보기
CL-20W-WWL 보기
40W POWER LED CL-40W-UWB 보기
CL-40W-WWL 보기
50W POWER LED CL-50W-UWB 보기
CL-50W-WWL 보기
100W POWER LED CL-100W-UWB 보기
CL-100W-WWL 보기
