UV LED

UV LED

UV SMD (UVA)

제품 특징

Type Part No. Color Pdf Lighting Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=5/20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Max
BUZZER test1
Blue test2 test3 test4 test5 test6 test7
CL-SF681UV-400
Ultraviolet 400 120 15 - 2.8 3.6
CL-SF681UV-390
Ultraviolet 390 120 10 - 2.8 3.6
CL-SF681UV-380
Ultraviolet 380 120 20 - 2.8 3.6
CL-SF681UV-370
Ultraviolet 370 120 10 - 2.8 3.6

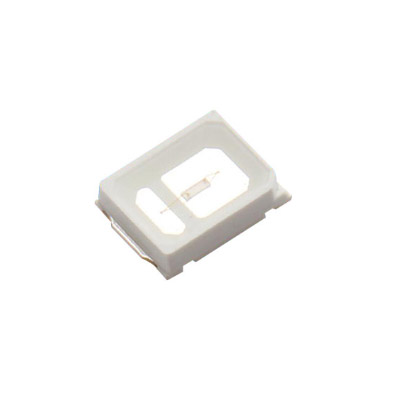

2835 CL-SFC281UV-405
Ultraviolet 405 120 205 - 3.0 3.6
CL-SFC281UV-400
Ultraviolet 400 120 35 90 2.8 3.4
CL-SFC281UV-380
Ultraviolet 380 120 155 - 2.8 3.6
3535 SFD3535UVA-405
Ultraviolet 405 120 35 Lm - 3.2 3.7
SFD3535UVA-395
Ultraviolet 395 120 30 Lm - 3.2 3.7
SFD3535UVA-365
Ultraviolet 365 120 700 mW - 3.2 3.8

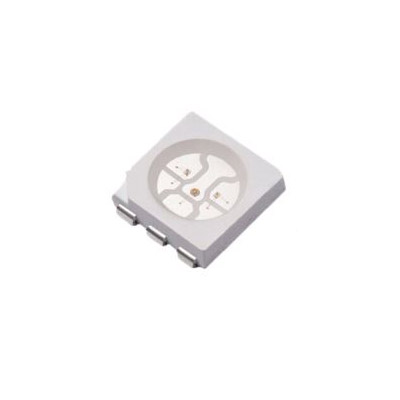

5050 CL-SFC506UV-400
Ultraviolet 400 120 170 - 2.8 3.5
CL-SFC506UV-390
Ultraviolet 390 120 120 - 2.8 3.5
CL-SFC506UV-380
Ultraviolet 380 120 70 - 3.0 3.6
CL-SFC506UV-370
Ultraviolet 370 120 35 - 2.8 3.6
Type Part No. Pdf Check Detail
BUZZER test1 보기
CL-SF681UV-400 보기
CL-SF681UV-390 보기
CL-SF681UV-380 보기
CL-SF681UV-370 보기
2835 CL-SFC281UV-405 보기
CL-SFC281UV-400 보기
CL-SFC281UV-380 보기
3535 SFD3535UVA-405 보기
SFD3535UVA-395 보기
SFD3535UVA-365 보기
5050 CL-SFC506UV-400 보기
CL-SFC506UV-390 보기
CL-SFC506UV-380 보기
CL-SFC506UV-370 보기
UV LED

UV SMD (UVC)

제품 특징

Type Part No. Color Pdf Lighting Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=5/20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Max

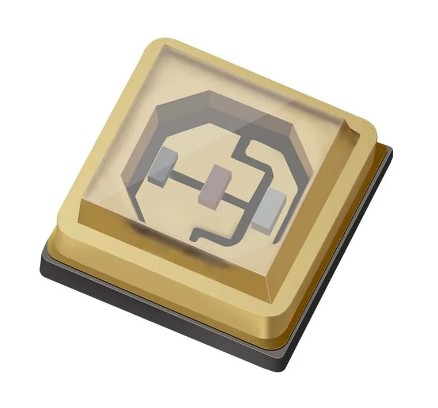

3535 (UVC) SFC3535UVC-270(4mW)
Ultraviolet 270 120 2mW - 5 8
SFC3535UVC-270(7mW)
Ultraviolet 270 120 4mW 7mW 5 8
SFC3535UVC-270(12mW)
Ultraviolet 270 120 8mW - 5 8
SFC3535UVC-270(15mW)
Ultraviolet 270 120 10mW - 5 8
3939 (UVC) SFC3939UVC-270(15mW)
Ultraviolet 270 120 10 - 5.0 8.0
4848 (UVC) SFD4848UVC-270(25mW)
Ultraviolet 270 120 20 - 5.0 7.5
6868 (UVC) SFC6868UVC-270(50mW)
Ultraviolet 270 120 30 - 18 24
Type Part No. Pdf Check Detail
3535 (UVC) SFC3535UVC-270(4mW) 보기
SFC3535UVC-270(7mW) 보기
SFC3535UVC-270(12mW) 보기
SFC3535UVC-270(15mW) 보기
3939 (UVC) SFC3939UVC-270(15mW) 보기
4848 (UVC) SFD4848UVC-270(25mW) 보기
6868 (UVC) SFC6868UVC-270(50mW) 보기
UV LED

UV LAMP

제품 특징

Type Part No. Color Pdf Lighting Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=5/20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Max

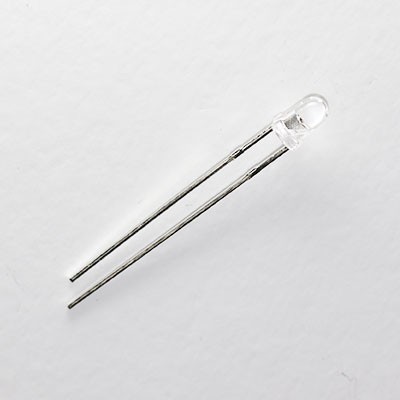

3Ø 3014UVC1C-400
Ultraviolet 400 20 14 19 3.2 3.6
3014UVC1C-405
Ultraviolet 405 20 14 19 3.2 3.6
3014UVC1C-410
Ultraviolet 410 20 14 19 3.2 3.6
5Ø 5014UVC1C-400
Ultraviolet 400 40 52 102 3.2 3.6
5014UVC1C-405
Ultraviolet 405 40 52 102 - 4.0
5014UVC1C-410
Ultraviolet 410 40 52 102 3.2 3.6
Type Part No. Pdf Check Detail
3Ø 3014UVC1C-400 보기
3014UVC1C-405 보기
3014UVC1C-410 보기
5Ø 5014UVC1C-400 보기
5014UVC1C-405 보기
5014UVC1C-410 보기
