LAMP LED

LAMP LED

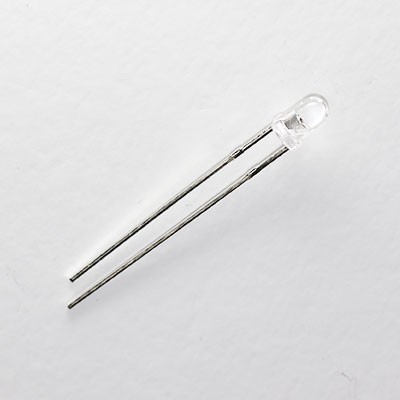

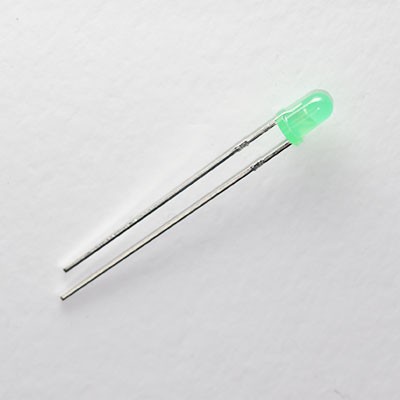

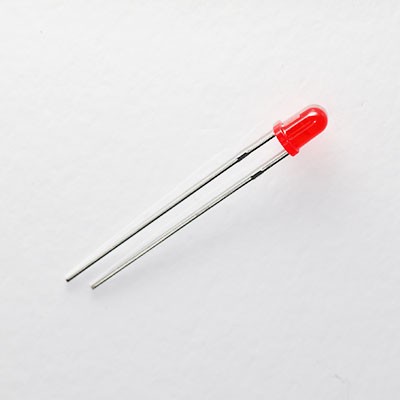

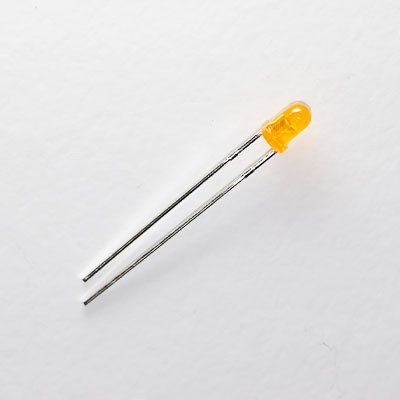

3Ø 일반 LED / 3Ø 고휘도 LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
3Ø 일반 LED 3014HD1A-001 Red Diffused 640 45 26.6 52 - 2.4
3014GD1A-001 Green Diffused 570 45 - 37.2 - 2.4
3014YD1A-001 Yellow Diffused 590 45 - 145 - 2.4
3014AD1A-001 Amber Diffused 606 45 145 280 - 2.4
3Ø 고휘도 LED 3014SRC1A-001
Red 635 25 102 200 - 2.4
3014LRC1A-002
Red 624 30 280 1100 1.8 2.4
3014GC1A-003
Yellow Green 570 20 52 102 1.8 2.4
3014UYC1A-010 Yellow 590 30 1520 2610 - 2.4
3014PUYC1A-005 Yellow 590 30 2610 - - 2.4
3014URC1A-007
Red 624 50 3130 5400 1.8 2.4
3014LURC1A-002
Red 624 20 5400 7700 - 2.4
3014PGC1A-001
Pure Green 520 30 6480 9300 - 3.6
3014UBC1A-001
Blue 467 50 1520 3130 2.8 3.6
3014UWC1A-001
White 10000K 30 7000 11000 - 3.6
3014UWC1A-UWW
Warm White X: 0.44, Y: 0.41 30 7000 11000 - 3.6
Type Part No. Pdf Check Detail
3Ø 일반 LED 3014HD1A-001 보기
3014GD1A-001 보기
3014YD1A-001 보기
3014AD1A-001 보기
3Ø 고휘도 LED 3014SRC1A-001 보기
3014LRC1A-002 보기
3014GC1A-003 보기
3014UYC1A-010 보기
3014PUYC1A-005 보기
3014URC1A-007 보기
3014LURC1A-002 보기
3014PGC1A-001 보기
3014UBC1A-001 보기
3014UWC1A-001 보기
3014UWC1A-UWW 보기
LAMP LED

5Ø 일반 LED & 5Ø 고휘도 LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
5Ø 일반 LED 5013HD1C-001 Red Diffused 640 45 - 52 - 2.4
5013GD1C-001 Green Diffused 570 45 - 37.2 - 2.4
5013YD1C-001 Yellow Diffused 590 45 - 72.8 - 2.4
5013AD1C-001 Amber Diffused 605 45 390 770 - 2.4
5Ø 고휘도 LED 5013LRC1C-001
Red 624 60 390 1100 - 2.4
5013GC1C-001
Yellow Green 570 60 102 390 - 2.4
5013UYC1C-009 Yellow 590 20 2610 4500 - 2.4
5013SRC1C-001
Blue 635 25 200 550 - 2.4
5013LUYC1H-003 Yellow 590 15 3750 7770 - 2.4
5013URC1C-012
Red 624 15 3750 5400 - 2.4
5014LURC1H-007
Red 624 15 6480 9300 - 2.4
5014PGC1C-001
Pure Green 525 30 7770 19000 - 3.6
5014UBC1H-001
Blue 470 60 2610 5400 - 3.6
5014UWC1C-010
White X:0.26, Y:0.27 30 7000 11000 - 3.6
5014UWC1C-UWW
Warm White x:0.38, y:0.45 30 10000 12000 - 3.6
Type Part No. Pdf Check Detail
5Ø 일반 LED 5013HD1C-001 보기
5013GD1C-001 보기
5013YD1C-001 보기
5013AD1C-001 보기
5Ø 고휘도 LED 5013LRC1C-001 보기
5013GC1C-001 보기
5013UYC1C-009 보기
5013SRC1C-001 보기
5013LUYC1H-003 보기
5013URC1C-012 보기
5014LURC1H-007 보기
5014PGC1C-001 보기
5014UBC1H-001 보기
5014UWC1C-010 보기
5014UWC1C-UWW 보기
LAMP LED

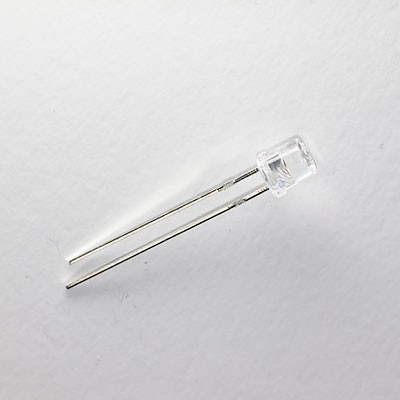

FLAT LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
5Ø Flat LED 5043URC1E-001
Red 630 100 52 102 - 2.4
5043UYC1E-002 Yellow 590 90 102 - - 2.4
5043PGC1E-001
Pure Green 525 90 770 1520 - 3.6
5043UBC1E-001
Blue 465 90 145 - - 3.6
5044UWC1E-001
White 10000K 135 770 1520 - 3.6
5044UWC1E-UWW
Warm White 3000K 135 1200 1500 - 3.6
3Ø Flat LED 3043URC1E-001
Red 630 100 100 200 - 2.4
3043UYC1E-001 Yellow 590 80 72.8 145 - 2.4
3043UBC1E-001
Blue 470 80 2500 3000 - 3.4
3043PGC1A-001
Pure Green 520 80 2180 4500 - 3.6
3044UWC1E-001
White 10000K 90 770 1100 - 3.6
Type Part No. Pdf Check Detail
5Ø Flat LED 5043URC1E-001 보기
5043UYC1E-002 보기
5043PGC1E-001 보기
5043UBC1E-001 보기
5044UWC1E-001 보기
5044UWC1E-UWW 보기
3Ø Flat LED 3043URC1E-001 보기
3043UYC1E-001 보기
3043UBC1E-001 보기
3043PGC1A-001 보기
3044UWC1E-001 보기
LAMP LED

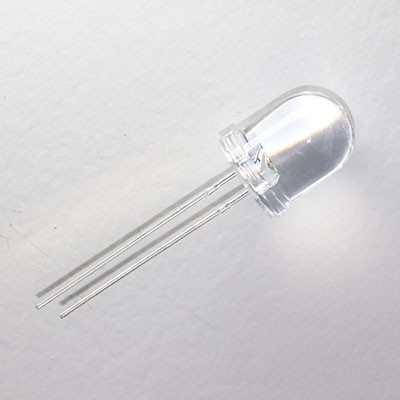

8Ø 일반 LED / 8Ø 고휘도 LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
8Ø 일반 LED 8013HD1B-001 Red Diffused 635 100 26.6 37.2 - 2.4
8013GD1B-001 Green Diffused 570 70 10.7 19.0 - 2.4
8013YD1B-001 Yellow Diffused 590 100 37.2 52.0 - 2.4
8Ø 고휘도 LED 8013URC1B-001
Red 630 40 2000 3500 - 2.4
8013UYC1B-001 Yellow 590 40 72.8 145 - 2.4
8013PGC1B-001
Pure Green 525 40 16000 23000 - 3.6
8013UBC1B-001
Blue 470 40 3700 6000 - 3.6
8013UWC1B-001
White X: 0.30, Y: 0.30 40 8000 13000 - 3.6
8013UWC1B-UWW
Warm White X:0.39, Y:0.45 40 8000 13000 - 3.6
Type Part No. Pdf Check Detail
8Ø 일반 LED 8013HD1B-001 보기
8013GD1B-001 보기
8013YD1B-001 보기
8Ø 고휘도 LED 8013URC1B-001 보기
8013UYC1B-001 보기
8013PGC1B-001 보기
8013UBC1B-001 보기
8013UWC1B-001 보기
8013UWC1B-UWW 보기
LAMP LED

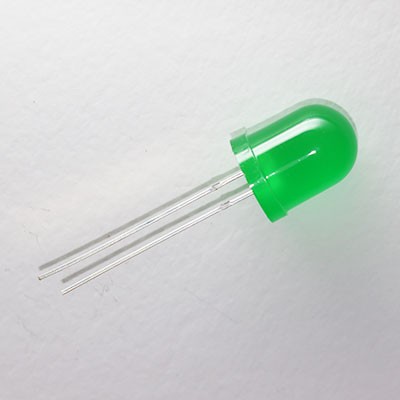

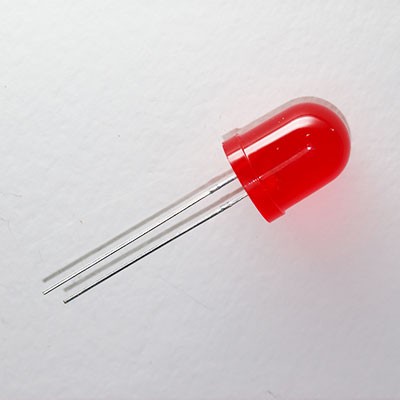

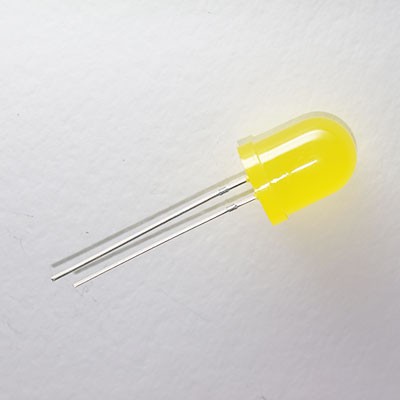

10Ø 일반 LED / 10Ø 고휘도 LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
10Ø 일반 LED 10013HD1A-001 Red Diffused 645 30 102 160 - 2.4
10013GD1A-001 Green Diffused 572 30 26.6 52 - 2.4
10013YD1A-001 Yellow Diffused 590 30 72.8 150 - 2.4
10Ø 고휘도 LED 10013URC1A-001
Red 630 20 2610 3750 - 2.4
10013UYC1A-001 Yellow 590 60 102 200 - 2.4
10013PGC1A-001
Pure Green 525 20 16000 22800 - 3.6
10013UBC1A-001
Blue 470 20 2610 3750 - 3.6
10013UWC1A-001
White 10000K 20 9300 13400 - 3.6
10013UWC1A-UWW
Warm White 3000K 20 6480 9300 - 3.6
Type Part No. Pdf Check Detail
10Ø 일반 LED 10013HD1A-001 보기
10013GD1A-001 보기
10013YD1A-001 보기
10Ø 고휘도 LED 10013URC1A-001 보기
10013UYC1A-001 보기
10013PGC1A-001 보기
10013UBC1A-001 보기
10013UWC1A-001 보기
10013UWC1A-UWW 보기
LAMP LED

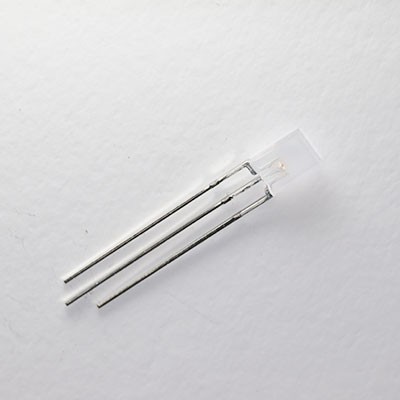

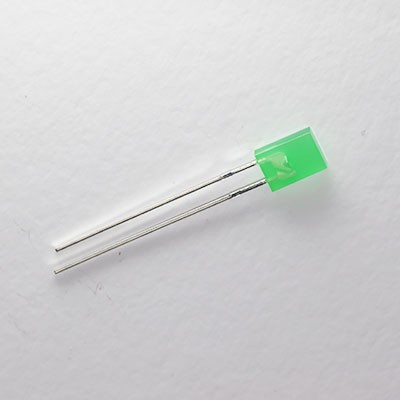

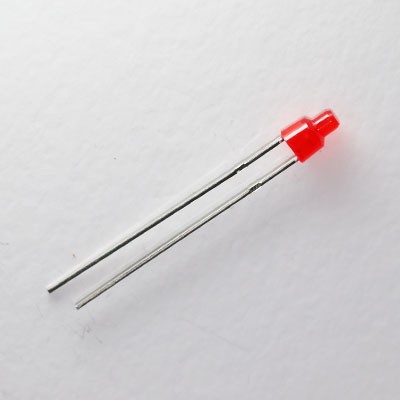

2014 꼭지타입 LED / 2X5 사각형 LED / 2X5 BI-COLOR(2COLOR) LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
2014 꼭지타입 LED 2014HD1A-001 Red Diffused 635 145 9.8 13.7 - 2.4
2014GD1A-001 Green Diffused 570 145 7 9.8 - 2.4
2014YD1A-001 Yellow Diffused 590 145 26.6 37.2 - 2.4
2X5 사각형 LED 25A3HD1B-002 Red Diffused 645 140 9.8 25 - 2.3
25A3GD1B-002 Green Diffused 568 140 5 15 - 2.4
25A3YD1B-002 Yellow Diffused 589 140 9.8 25 - 2.4
2X5 BI-COLOR(2COLOR) LED 25A9RGW1B-001-CC
White Diffused 630 & 570 120 3.5 & 8.5 7 & 13.7 - 1.8 & 2.2
25A9RGW1B-001-CA
White Diffused 630 & 570 120 8.5 & 8.5 13.7 & 13.7 - 1.8 & 2.2
Type Part No. Pdf Check Detail
2014 꼭지타입 LED 2014HD1A-001 보기
2014GD1A-001 보기
2014YD1A-001 보기
2X5 사각형 LED 25A3HD1B-002 보기
25A3GD1B-002 보기
25A3YD1B-002 보기
2X5 BI-COLOR(2COLOR) LED 25A9RGW1B-001-CC 보기
25A9RGW1B-001-CA 보기
LAMP LED

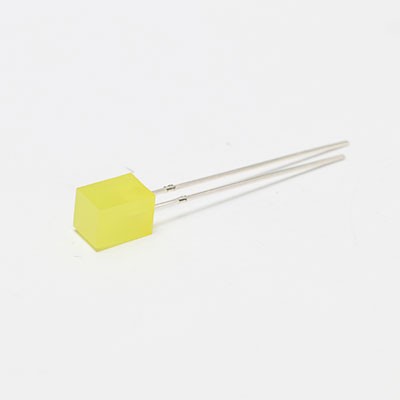

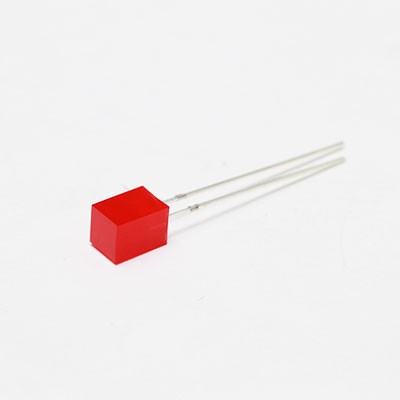

5X5 사각형 LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
5X5 사각형 LED CL-55A3HD1A-001 Red Diffused 630 140 40 60 - 2.3
CL-55A3GD1A-001 Green Diffused 570 140 40 60 - 2.3
CL-55A3YD1A-001 Yellow Diffused 590 140 40 60 - 2.3
Type Part No. Pdf Check Detail
5X5 사각형 LED CL-55A3HD1A-001 보기
CL-55A3GD1A-001 보기
CL-55A3YD1A-001 보기
LAMP LED

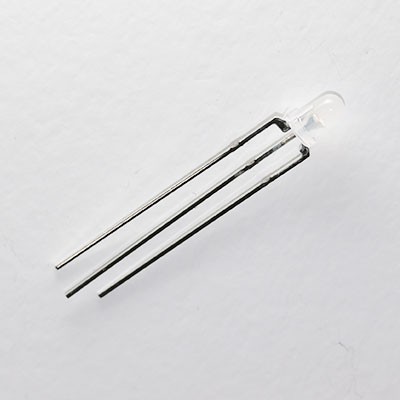

3Ø BI-COLOR(2COLOR) LED / 5Ø BI-COLOR(2COLOR) LED / 5Ø RGB(FULL COLOR) LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
3Ø Bi-Color (2color) LED 3019EGW1A-002-CC
White Diffused 630&570 60 13.7&26.6 52&72.8 -&- 2.2&2.6
3019SGW1A-003-CA
White Diffused 650&570 60 26.6&13.7 72.8&52 -&- 2.2&2.6
5Ø Bi-Color (2color) LED 5019RGW1C-001-CC
White Diffused 630&570 50 40&30 60&50 -&- 2.2&2.2
5019SGW1C-003-CA
White Diffused 630&570 50 40&30 60&50 -&- 2.6&2.6
5Ø RGB (Full Color) LED 5019RGBC1C-CA-01 Full Color 620&510&465 30 530&2000&530 1300&5000&1200 1.8&2.8&2.8 2.4&3.6&3.6
Type Part No. Pdf Check Detail
3Ø Bi-Color (2color) LED 3019EGW1A-002-CC 보기
3019SGW1A-003-CA 보기
5Ø Bi-Color (2color) LED 5019RGW1C-001-CC 보기
5019SGW1C-003-CA 보기
5Ø RGB (Full Color) LED 5019RGBC1C-CA-01 보기
LAMP LED

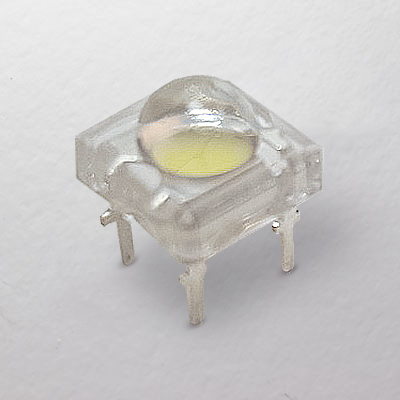

SUPER FLUX LED

제품 특징

Type Part No. Color Pdf Packaging Color Wave Lenght (Nm) Viewing Angle2 1/2 IV(mcd) @IF=20mA Forward Voltage(v) Check
Typ Typ Min Typ Min Typ
SUPER FLUX LED 1130URC1C-001
Red 630 90 1100 1300 1.8 2.2
1130UYC1C-001 Yellow 590 90 1000 1200 1.8 2.2
1130PGC1C-001
Pure Green 525 90 2200 3000 2.8 3.4
1130UBC1C-001
Blue 470 90 1000 1300 2.8 3.4
1130UWC1C-001
White X: 0.30, Y: 0.30 90 2500 3500 2.8 3.4
1130UWC1C-UWW
Warm White X: 0.38, Y: 0.45 90 2500 3500 2.8 3.4
Type Part No. Pdf Check Detail
SUPER FLUX LED 1130URC1C-001 보기
1130UYC1C-001 보기
1130PGC1C-001 보기
1130UBC1C-001 보기
1130UWC1C-001 보기
1130UWC1C-UWW 보기
